Automotive, Medical and Consumer goods design processes included:

•  Conventional Injection Molding

•  Multi-Cavity molding

•  Two and three shot molding

•  Hot runner systems (Mold Masters, Yodo, Huskey, Incoe, Fastheat, Osco and Synventive)

•  Auto unscrewing molds

•  Shuttle/rotary molds

•  Insert/hand load molding

•  Die cast and Zinc tooling

•  Silicone molds

•  Closure molds

•  Over molds

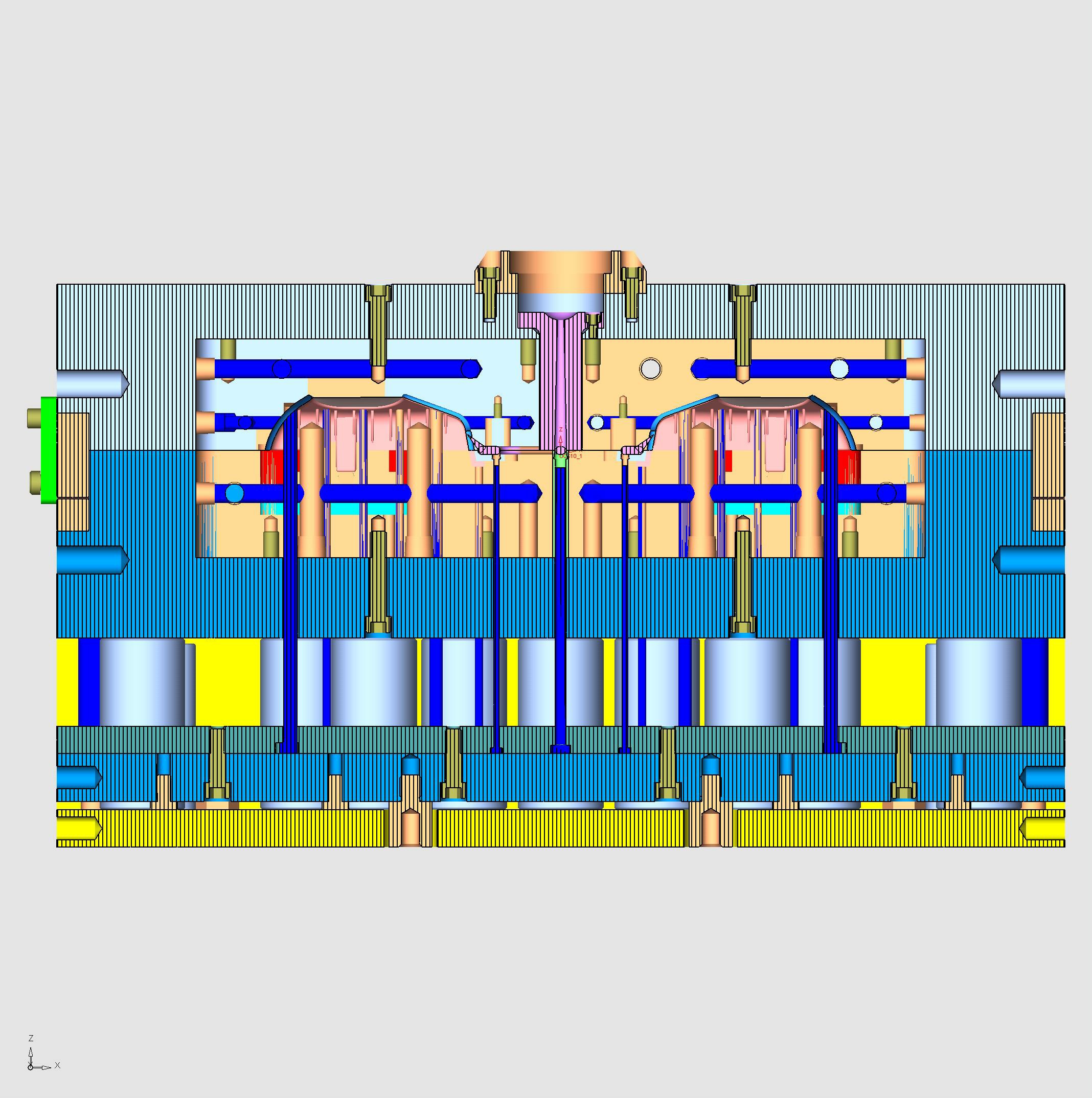

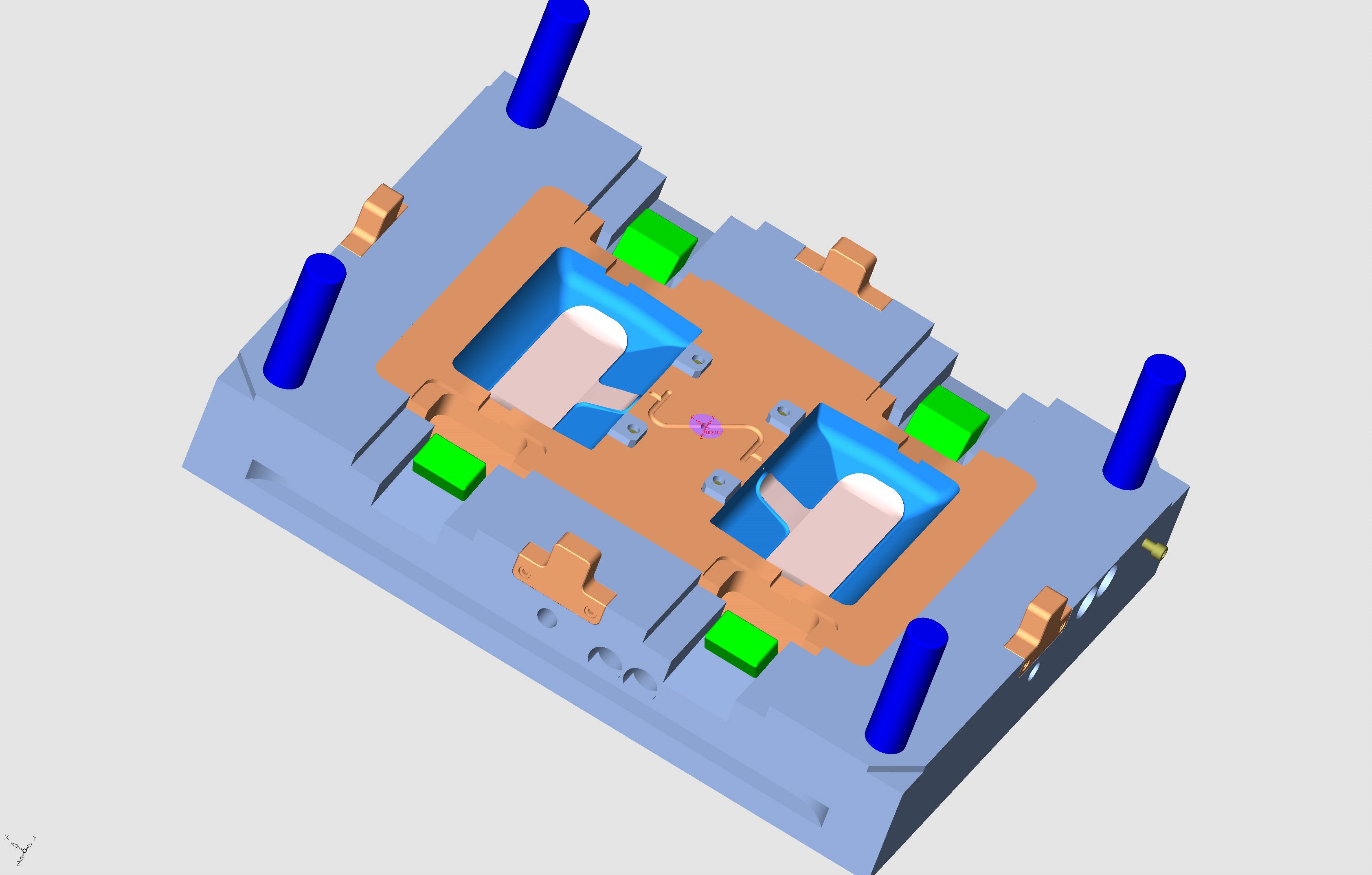

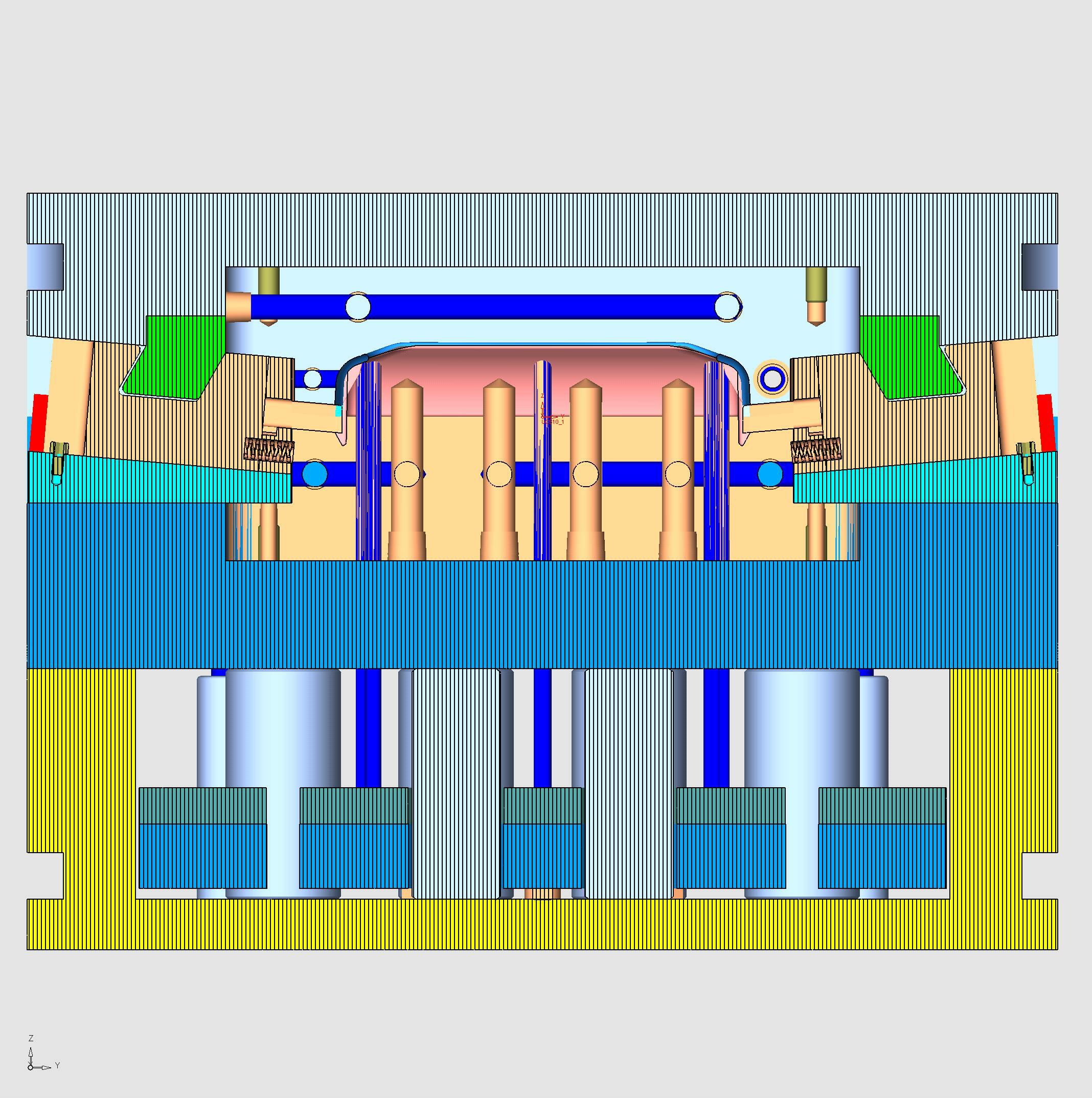

Examples of simple mold design (this took about 30 hours to complete)

Click image to enlarge

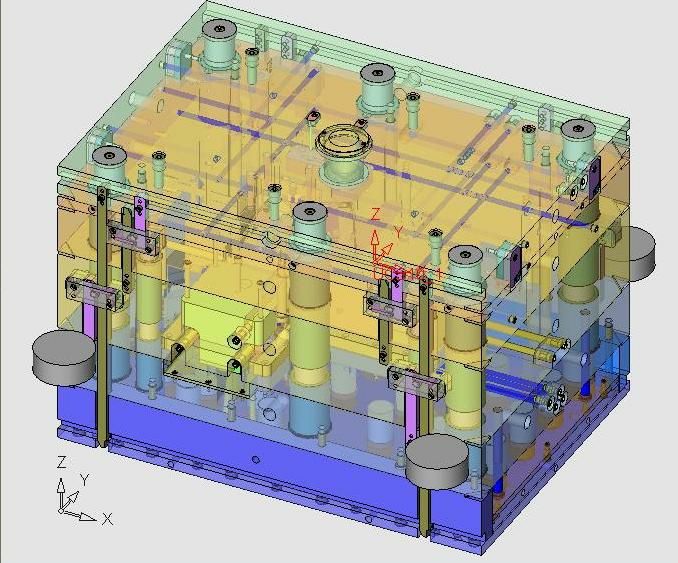

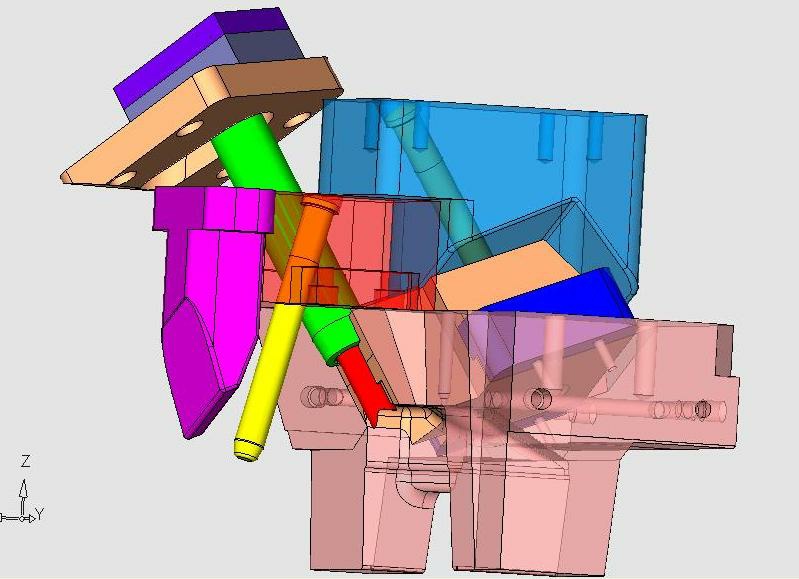

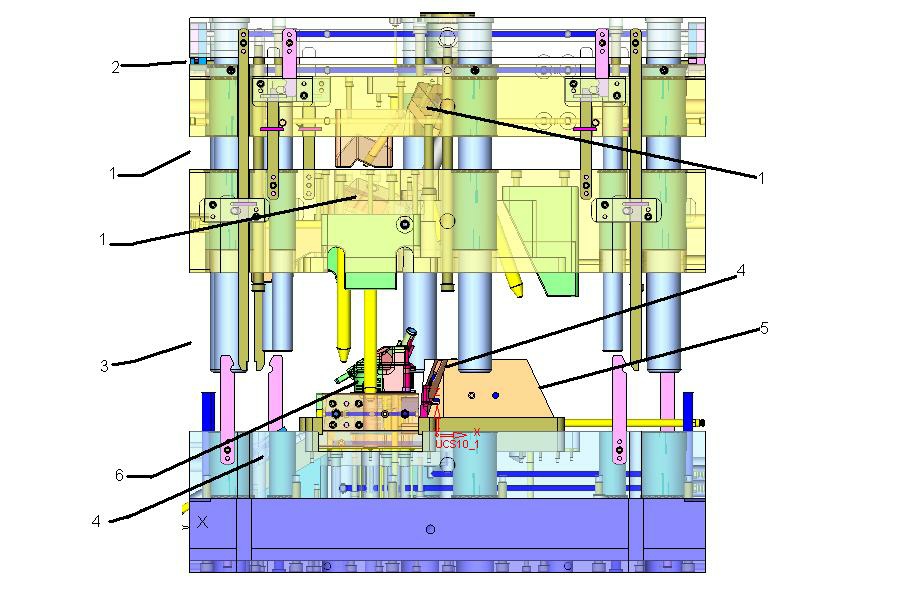

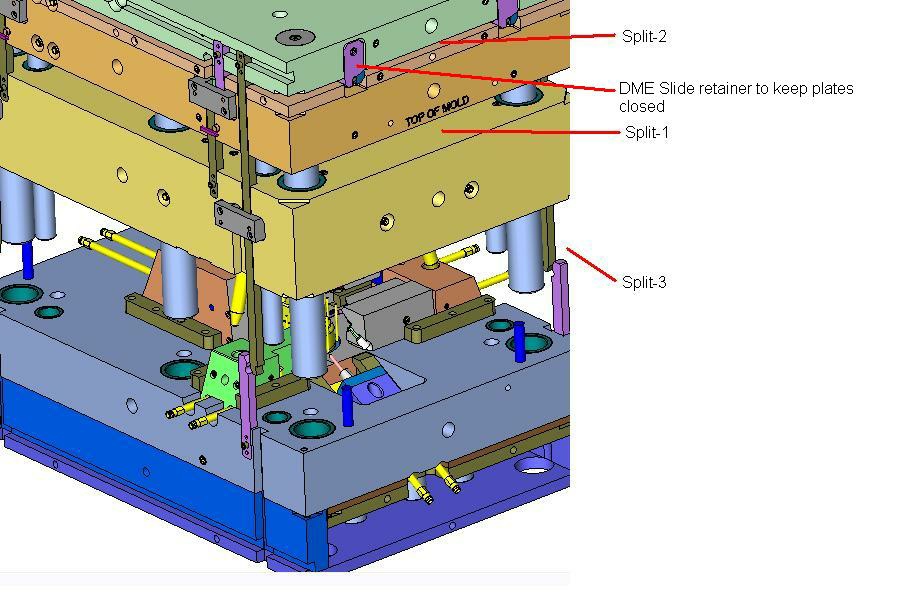

1.  Parting line held closed by 1set of Hasco latch locks, causing 2 internal compound slides buried in A-side to active      three plate action held closed by DME slide retainers (clothes pins).

2.  Second set of latch locks bottoms out, mold parting line still held closed, DME slide retainers release for runner and      3-plate gate drop.

3.  First set of latch locks bottoms out, opening mold parting line.

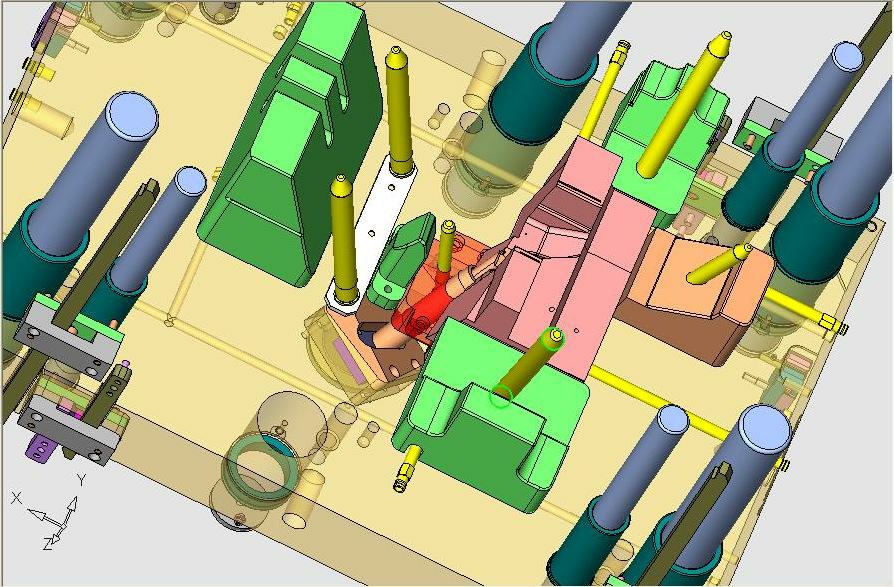

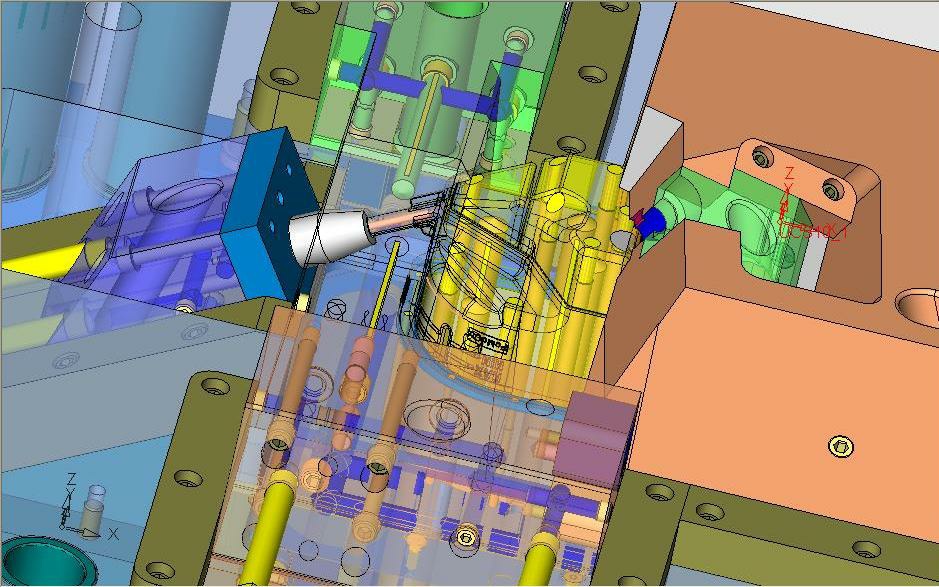

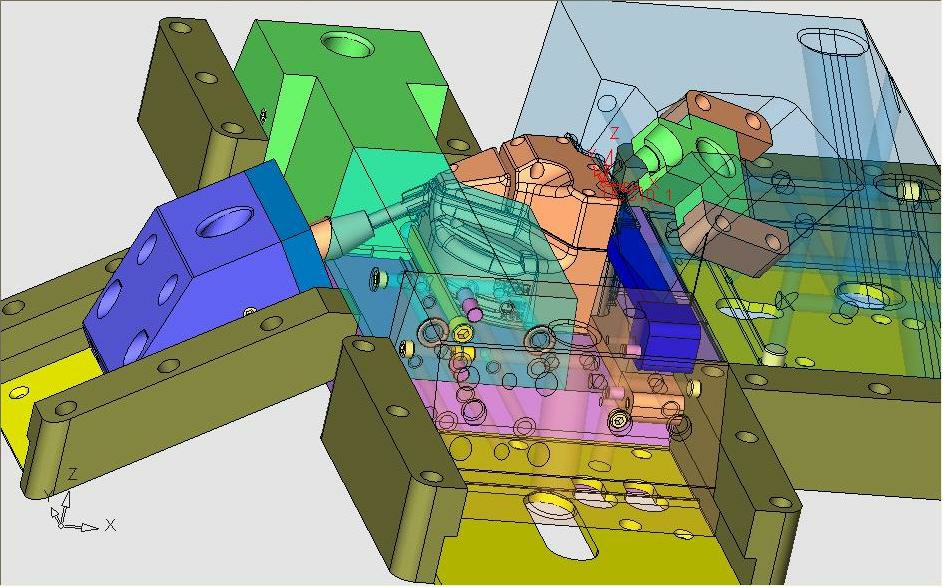

4.  This forces a compound slide buried in a larger delayed slide, another slide running 30, and two parting line slides to      open.

5.  Mold continues and delayed slide opens.

6.  Part ejects.

Mold Opens

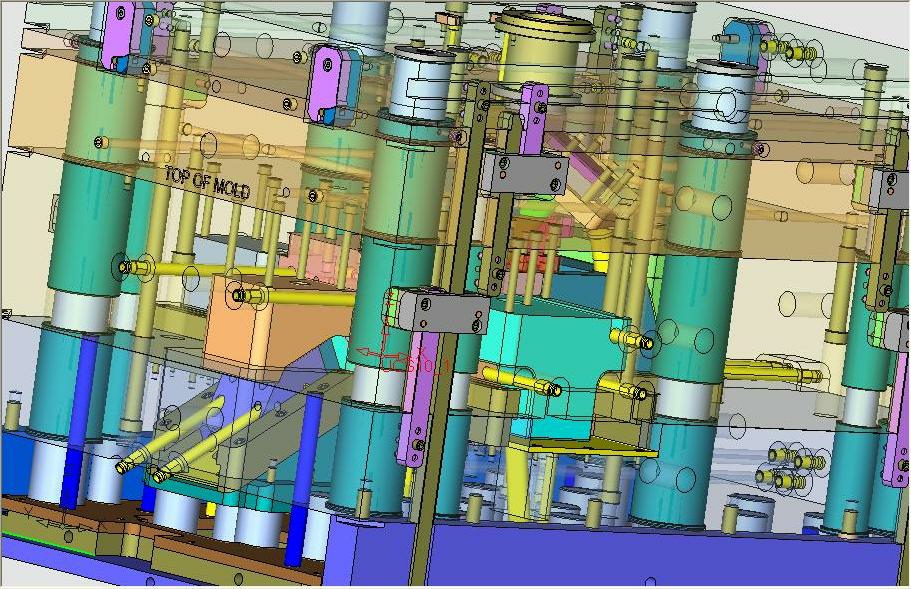

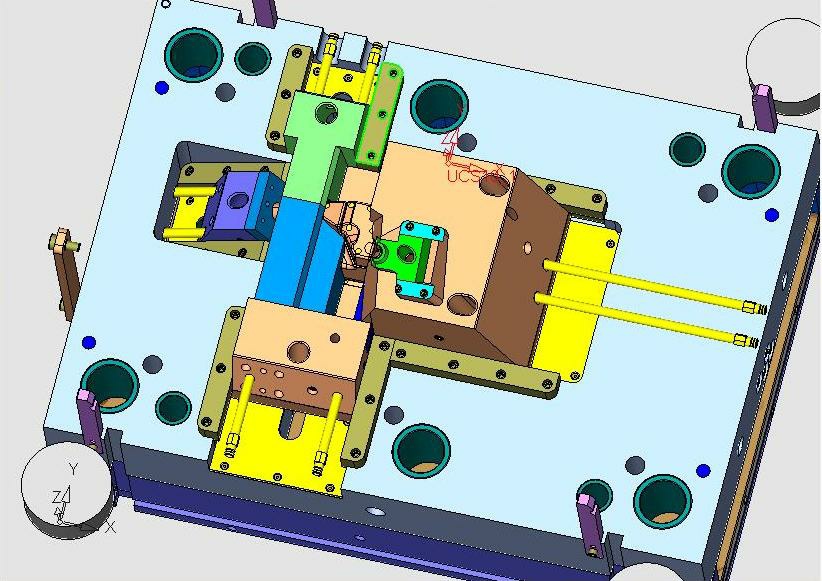

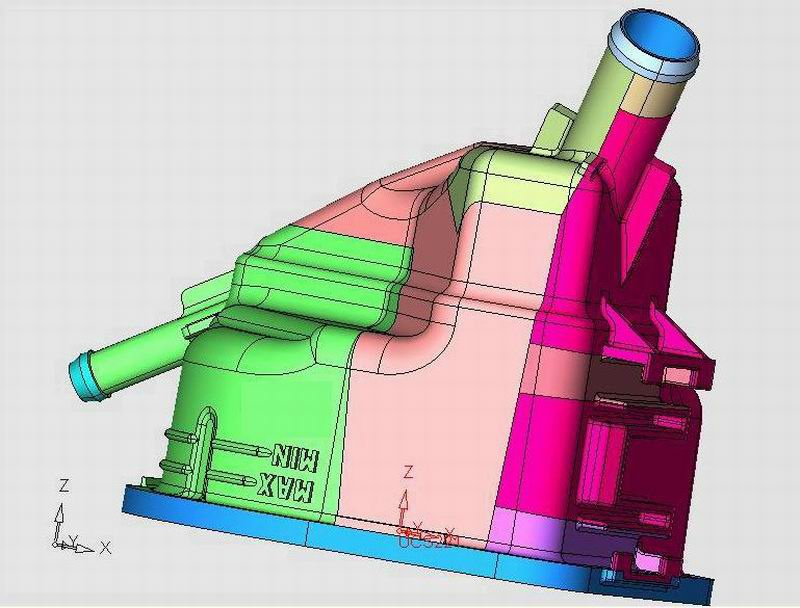

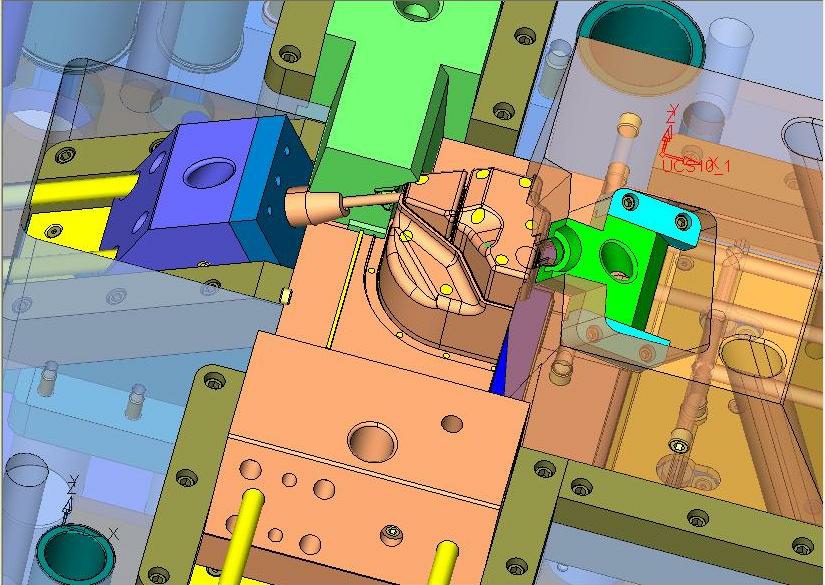

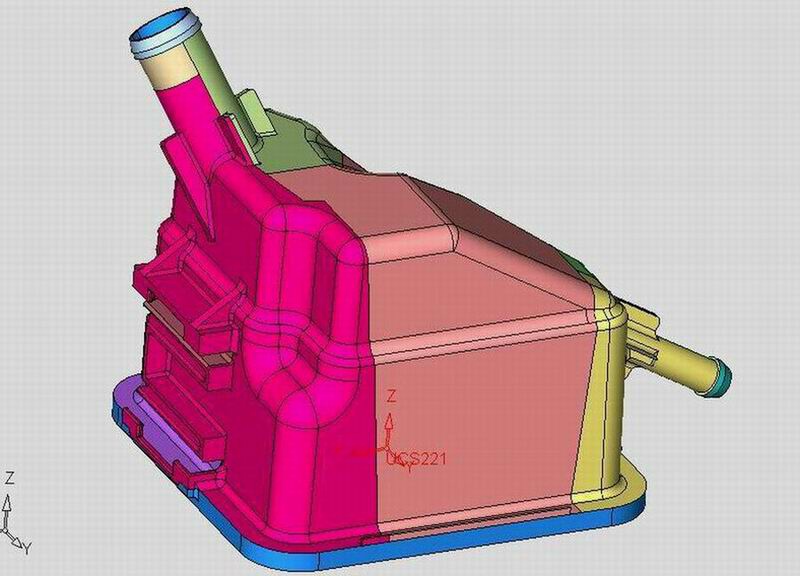

More designs a little more complicated, views of mold described above
